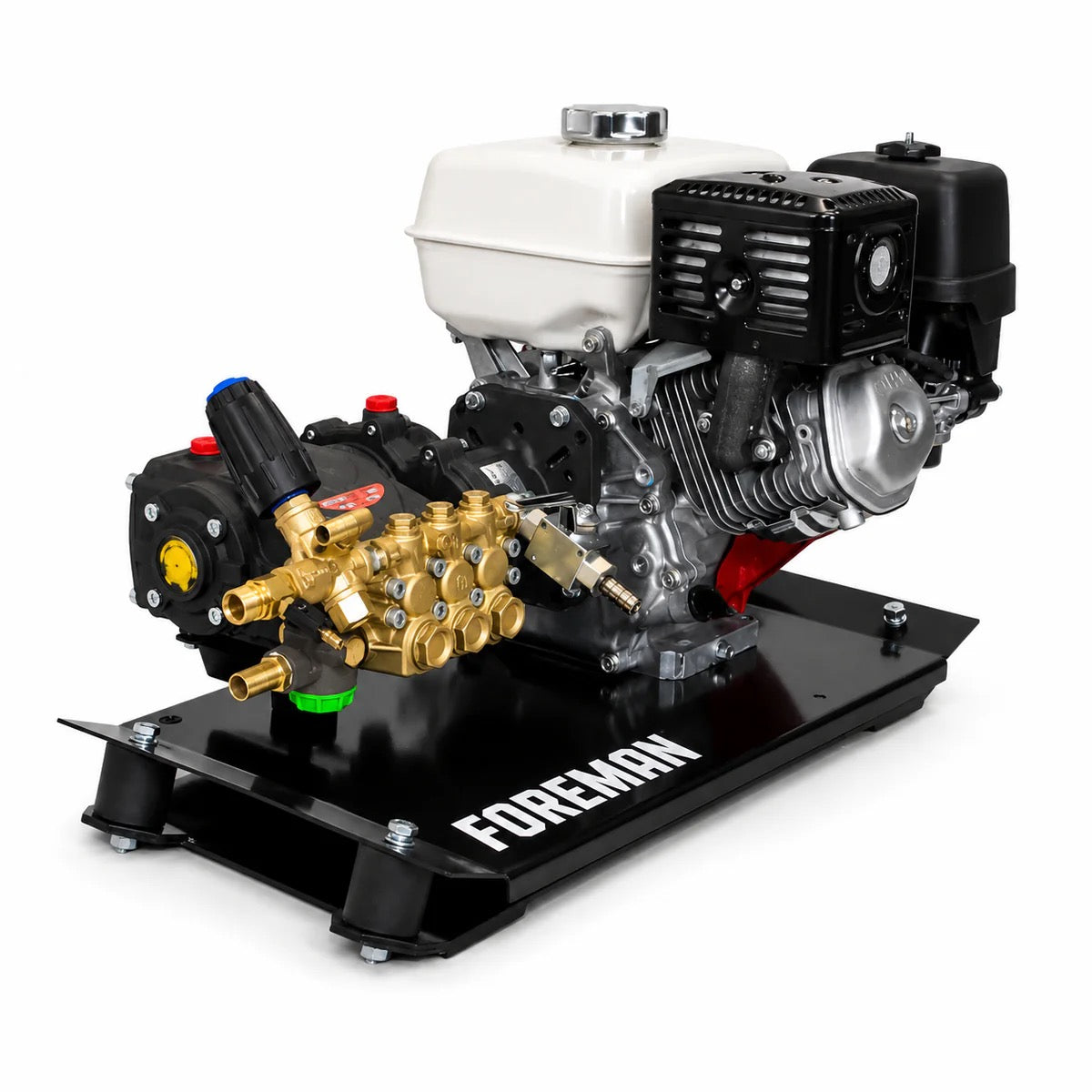

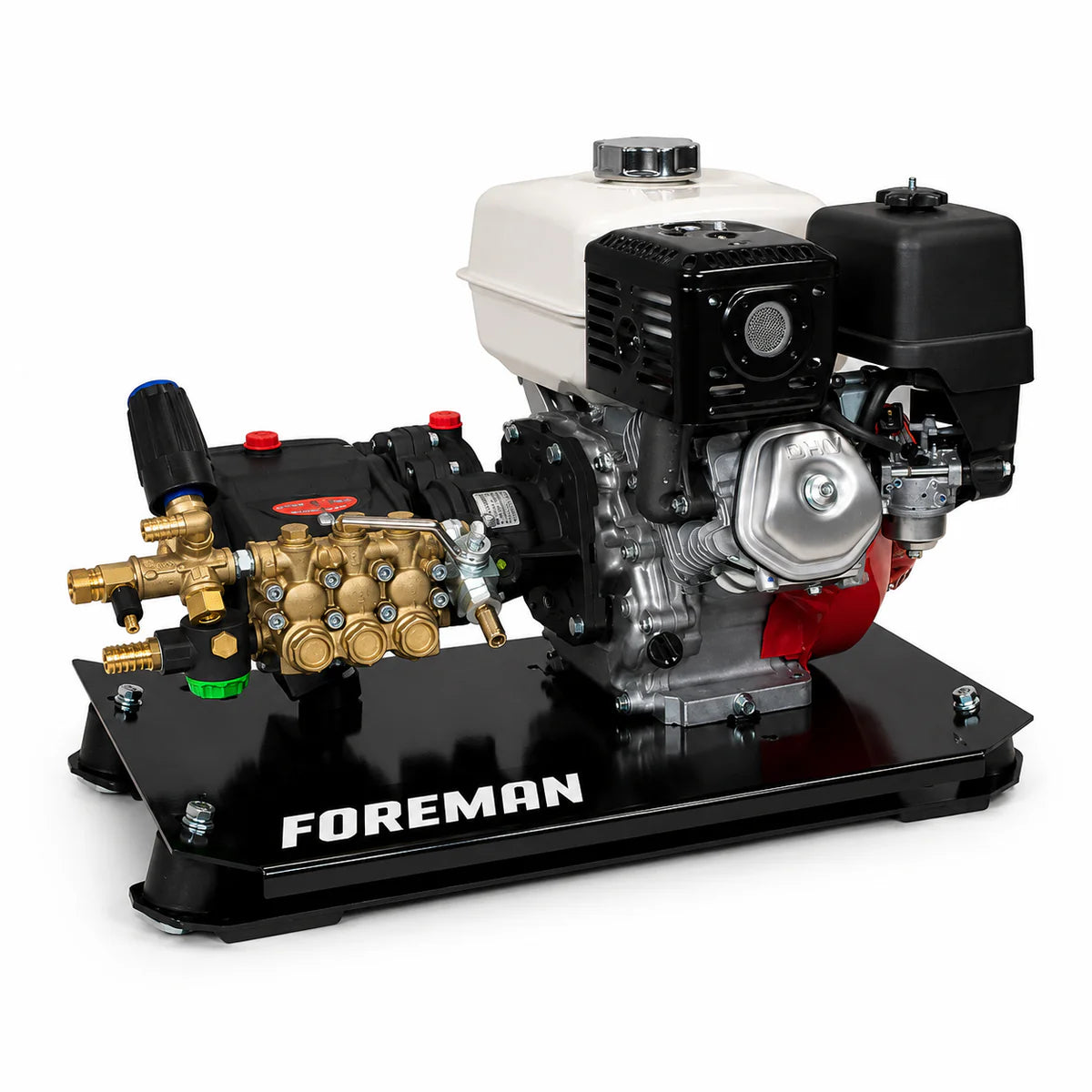

Ask about WRX-200HD Skid Petrol Pressure Washer | 200 Bar
TECHNICAL SPECIFICATIONS
| Maximum Rated Pressure | 200 bar (2900 psi) |
| Flow Rate | 21 L/min |
| Engine | Honda GX390 petrol engine with Oil Alert |
| Pump | Interpump 59 Series triplex pump |
| Gearbox | Interpump RS500 reduction gearbox |
| Drive Type | Gearbox-Driven |
| Pump Speed | 1450 RPM |
| Fuel Type | Unleaded Petrol |
| Starting System | Manual Recoil Start |
| Electric Start Option | Electric-start configurations available on selected skid-mounted variants |
| Battery Supply | Electric-start variants are not supplied with battery or battery cables |
| Fuel Tank Capacity | 6.5 L |
| Unloader Type | Return-to-Tank (RTT) |
| Pressure Control | VRT3 adjustable return-to-tank unloader valve with external bypass system |
| Frame Type | Heavy-Duty Powder-Coated Skid Frame with Anti-Vibration Isolation Mounts |
| Dimensions | 720 × 460 × 500 mm |
| Weight | 61 kg |
| Compliance | UKCA Compliant |
| Assembly | Assembled, calibrated, and pressure-tested in the United Kingdom |

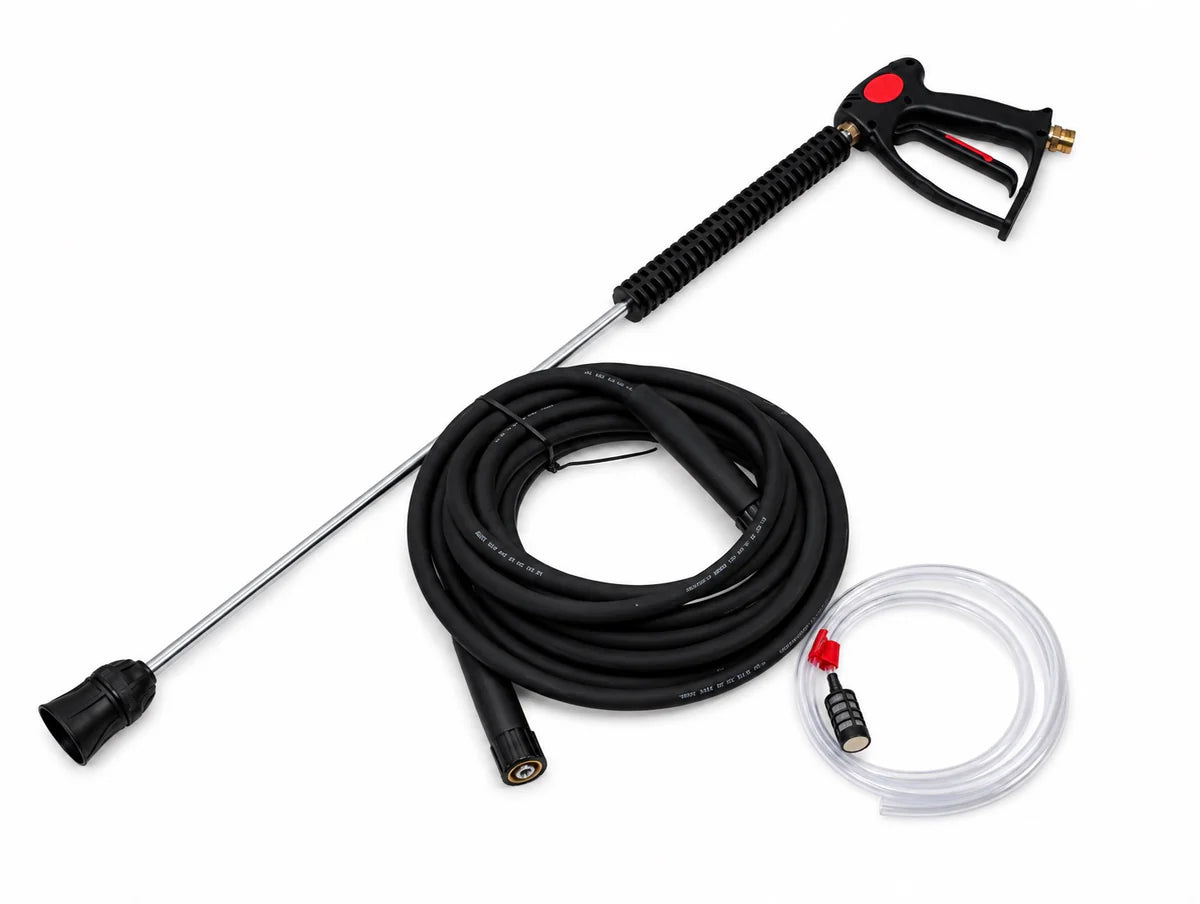

| Standard Equipment | MV925 Trigger Gun with 900mm Straight Lance |
| High-Pressure Hose | 10m Wire-Braided High-Pressure Hose |
| Chemical Injection | External Chemical Injector |
| Operating Note | Performance figures are stated as maximum pressure and nominal flow rate values. Peak pressure values are not used to define continuous operating capability. |
FEATURES
-
The pump is driven through an Interpump Group RS500 reduction gearbox operating at approximately 1450 RPM. Lower pump operating speed reduces mechanical load, heat generation, and operating stress during prolonged cleaning work. This configuration is specified for professional applications involving sustained operating periods and extended duty cycles.
-
Powered by a commercial-grade Honda GX390 petrol engine with integrated Oil Alert protection system. The GX390 platform is widely specified across professional industrial and construction equipment where higher power output and sustained operation are required.
-
Fitted with an Interpump Group 59 Series triplex plunger pump configured for professional pressure cleaning applications. The triplex pump design uses serviceable internal components and separate ceramic plungers to support consistent pressure delivery and long-term maintenanceability.
-
Return-to-tank bypass configuration helps reduce heat build-up during trigger-off operation by recirculating bypass water back to the supply tank rather than through the pump manifold.
-
Low-pressure downstream chemical injector enabling detergent application through the outlet circuit. The injector operates on the low-pressure side of the pump system, reducing chemical exposure within the high-pressure pump manifold.
-
Integrated priming valve fitted to the pump manifold assisting pump priming when operating from suction-fed water supplies. The system supports improved water supply stabilisation during initial startup and reduces priming difficulty when drawing from static water sources such as tanks or bowsers.
-
Heavy-duty powder-coated skid frame fitted with anti-vibration isolation mounts for fixed-position and professional installation applications. The skid configuration provides a compact and structurally stable platform suited to vehicle mounting, trailer integration, and static installation environments.
-
Each machine is assembled, calibrated, and pressure-tested in the United Kingdom prior to dispatch. Final inspection includes operating verification, pressure confirmation, and general assembly checks before shipment.
ACCESSORIES
DELIVERY & RETURNS
- Complete machines are delivered palletised and partially assembled.
- Each machine undergoes pre-delivery inspection prior to dispatch.
- Delivery requires site access suitable for pallet handling.
- Refer to the Delivery & Returns policy for full details.
Product Support
Access manuals, maintenance schedules, service information, recommended service parts and troubleshooting resources for this product.
